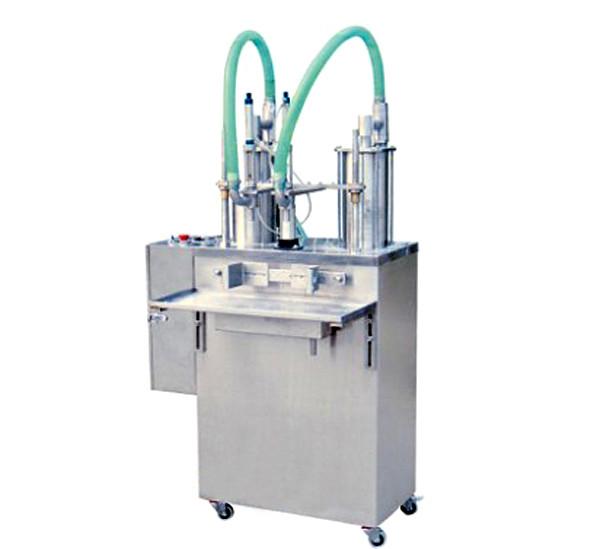

Semi-Automatic 2 nozzle Piston Shampoo Filling Machine for 100ml-1000ml bottle
Major characteristics:
1. This machine with two filling heads is to aim at liquid filling range from 100ml-1000ml.
2. The mainly part of machine is made of Stainless Steel 304 or 316L.
3. This machine is controlled by a pneumatic device with foot steps, when you step the pneumatic device, the machine starts filling, and the filling volume is controlled by a sensor which set inside the driving part.
4. Simple structure, easy to operate, accurate precision of quantitative filling and large yield etc.
Technical parameters
| No. | Items | Performance |
| 01 | Machine dimension (L×W×H) | 1150mm x 850mm x 1800mm |
| 02 | Machine weight | 300Kg |
| 03 | Container mouth diameter | ≥ φ35mm |
| 04 | Max container size | φ200mm(diameter)×300mm |
| 05 | Power supply | AC220V;50HZ(or according to customers’ requirement) |
| 06 | Power | 0.75 kW |
| 07 | Filling volume range | 100ml-1000ml |
| 08 | Error range | ±2ml for 1L |
| 09 | Pneumatic (air-operated) source | 0.6Mpa clean and stable compressed air |
| 10 | Filling heads number | 2 |
| 11 | Production capacity | 15-20 bottles/minute for 1L(according to operator’s operating speed) |
| 12 | Required working relative humidity | 95% (no condensation) |
| 13 | 95% (no condensation) | 0 ～ 40℃ |
Machine details:
Filling nozzle:
The filling nozzle can be extended, can diving into the bottle bottom to filling, filling meanwhile going up, to prevent bubbles.
The semi-automatic piston filling machine is suitable for various liquid such as detergent, pesticide, painting, lubricants oil etc., it has a widely using range, and east to operate, small footprint and save space
Application products: good work for filling edible oil
Good work for filling hand washing liquid
Good work for filling lubricants oil, engine oil
Packaging & Shipping
The machine is packked by non-fumigation wooden case, and for keeping the wooden case more secure, we inserted the iron support inside wooden case, makes it suitable for long-term sea delivery.
Tom's logistic department will load the goods into container direclty in Tom factory
